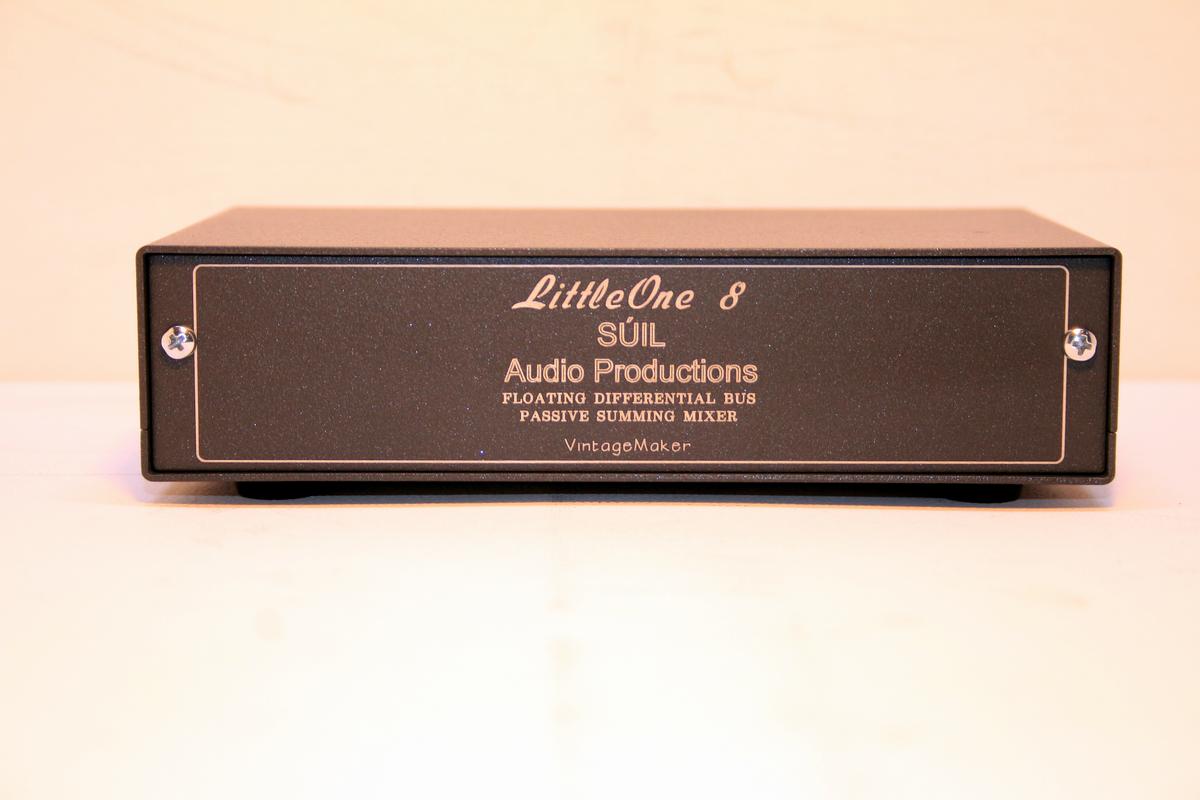

LittleOne 8×2 Analog Stereo Balanced Passive Summing Mixer Box – DSUB, TRS, or XLR – Select Connector type

189.00 219.00

Please Select All Options!

8 Input Stereo Balanced Summing Mixer – LittleOne Wide for UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, Arturia MiniFuse, or other

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just tell me what you need and I build for you!



Gain Reduction types: -6,5dB / -10dB / -15dB / -20dB / -25dB (free order feel free to ask) or select sound card

MINIMAL: -6,5dB -10dB gain reduction – ideal for low level preamps or DAW mic pre or instrument input
LOW: -15dB gain reduction – ideal for entry level preamps or DAW mic pre or instrument input
MID: -20dB gain reduction – ideal for mid range preamps or DAW mic pre or instrument input
HIGH: -25dB (or more) gain reduction – ideal for high gain range preamps like Neve, Api, Avalon or DAW mic pre

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

Portable compact Analog Stereo Balanced Passive Summing Mixer Box for live stage and studio recording. Mix analog and digital audio with Tascam Model 16, Behringer ADA8000, and M-Audio M-Track Eight 8. Ideal for on-the-go music production.

CONNECTION TYPE

DSUB IN – TRS OUT, DSUB IN – XLR OUT, TRS IN – TRS OUT, TRS IN – XLR OUT

SELECT SOUND CARD

UAD Apollo, Apogee, Arturia, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, OTHER let me know

CUSTOM NAME ENGRAVING?

YES PLEASE, NO THANKS

BUILD TIME

10 DAYS
