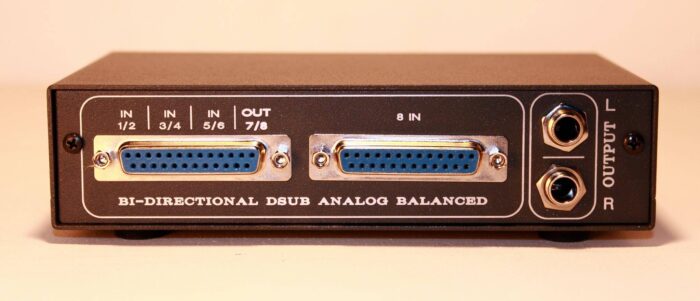

14 Input Summing Box Mixer – LittleOne Wide 14×2 DSUB-TRS bi-directional dsub connection
0.00 €
14 ch DSUB / DB25 Tascam Balanced
PRE-ORDER HERE
Do not find your summing mixer? Tell me your DAW Interface Type! Ask to build Yours!
ORDER HERE
Boost your Digital Audio Workstation (DAW) Interface by integrating a genuine Analog Summing Box Mixer, getting a rich 3D analog-console-esque audio experience. Improve your studio setup with a top-tier, balanced, high-fidelity signal path for warmth and studio-grade quality.
Build time: 10 Working Weekdays after cleared payment
Analog Studio Summing Mixer – Analog mix synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse or other audio studio interface sound cards (let me know yours) designed for Native Instruments Komplete Audio 6 Mk2 USB Audio Interface + synth
You can get as many channels and options as you want, so let’s build your gear!
STM = Stereo to Mono: It give an extra stable analog mono base for your mix (Kick / Bass) then a superior separation and 3D depth for additional stereos -read Documentation or see on Youtube
Dual balanced discrete stereo signal path

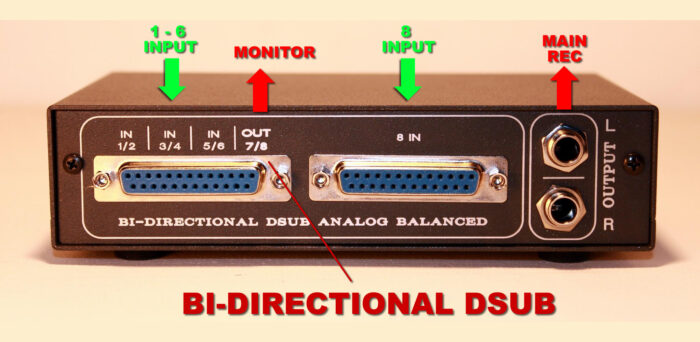

Input: 14 ch DSUB / DB25 Tascam Balanced
Output 1: 1xStereo /2 x TRS Balanced L/R (common)
Output 2: 1xStereo 7/8 Dsub (common)
1 x Stereo to 2 Mono on 1/2 stereo input read more…
DIR OUT or SUM mode select monitoring switch on 5/6 input read more…
-15/-25dB variable headroom gain switch
Unique Name engrave (let me know)
Build time 10 working weekdays (estimated)
STM = Stereo to Mono: read Documentation or see on Youtube
- Selected VISHAY DALE military metal-film resistors
- Full discrete dual stereo signal topology
- In/Out:Balanced, floating to ground
- Output impedance 600-1k ohms balanced
- Output level: -10 dB / – 30dB nominal
- Frequency response: 0-500Khz
- Crosstalk 1Khz: -95dB
- Signal/ Noise rate: -110dB
- TRS wiring: Tip: HOT – Ring: COLD – Sleeve: GROUND
- Pure hand made! Hand wired and tested point-to-point!
- Laser engraved massive aluminium alloy box!
| CONNECTION TYPE | DSUB IN – TRS OUT, DSUB IN – XLR OUT, TRS IN – TRS OUT, TRS IN – XLR OUT |
|---|---|
| SOUND CARD? | UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, OTHER – let me know |
| KNOB STYLE | ROUND BLACK, VINTAGE WHITE, VINTAGE BLACK |
| CUSTOM NAME? | YES, NO THANKS |
| BUILD TIME | 10 DAYS |
