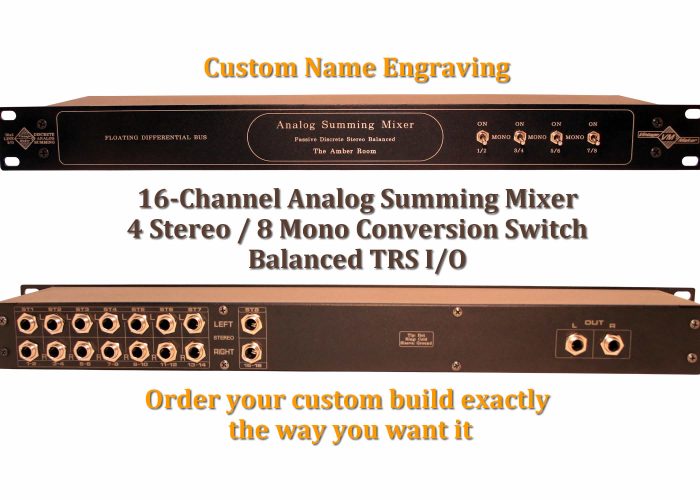

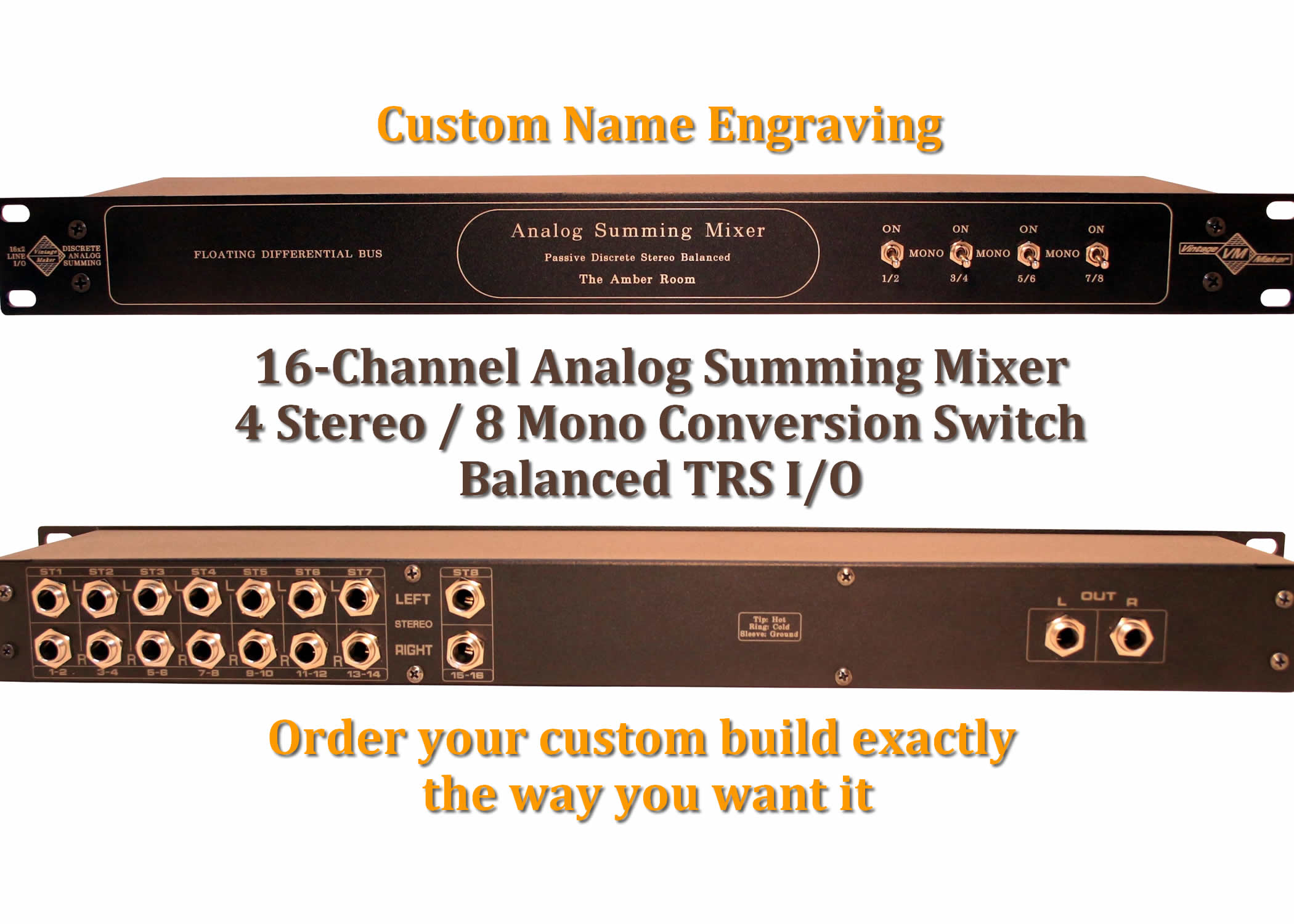

16 Channel Rackmount Passive Analog Summing Mixer – TRS Balanced

16 Channel Rackmount Passive Analog Summing Mixer – TRS Balanced

Take your mixes to the next level with this 16-channel rackmount passive analog summing mixer, engineered for professional hybrid studio workflows. Featuring balanced TRS stereo I/O, this unit delivers transparent, clean summing  — letting your source material shine through exactly as intended.

---

Why Choose a Passive Analog Summing Mixer?

Passive summing is the preferred method for engineers who want the warmth and depth of analog signal combining without the noise floor introduced by active circuitry. By routing your DAW outputs through a dedicated summing mixer, you gain a wider, more three-dimensional stereo image that in-the-box mixing simply can’t replicate.

---

Key Features

• 16 balanced TRS inputs for full mix bus control
• 2x balanced TRS stereo output (L/R) for flexible routing options

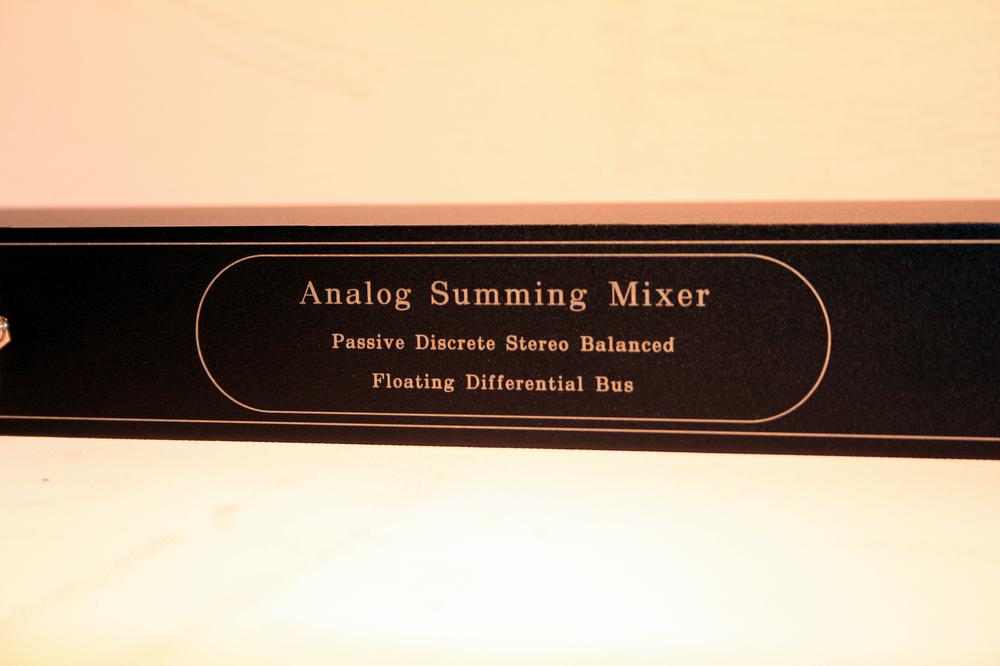

• Floating Differential Sum Bus circuit — exclusively designed by Vintagemaker for ultra-transparent, low-distortion summing
• Passive analog design — zero coloration, maximum transparency
• Rackmount chassis for professional studio integration
• Compact and road-ready build quality
• Compatible with all major DAW interfaces and patchbays

---

Perfect For

Recording studios, mixing engineers, home studio professionals, and anyone looking to bridge the gap between digital precision and analog warmth.

---

STM – Stereo to Mono Switch: Gives a stable Real Analog Mono Base for key elements like Kick, Bass, Main Vox, and Snare. Save digital channels and enhance separation with a simple switch, achieving a centered mono signal for hard-panned L/R inputs. Easily toggle for stereo instruments or maintain a fully stereo mix with panning options from your DAW.

Specifications

• Channels: 16
• Input Type: Balanced TRS
• Output Type: Balanced TRS Stereo — 2x TRS Out (L/R)
• Design: Passive Analog Summing Circuit
• Circuit: Floating Differential Sum Bus — designed by Vintagemaker
• Resistors: Studio grade Vishay Dale military metal-film resistors
• Signal Path: Stereo Balanced Discrete In/Out
• Insertion Input Resistance: -15dB / -20dB / -25dB (order)
• Output Impedance: 600–1k Ohms Balanced
• Frequency Response: 0–500kHz
• Crosstalk at 1kHz: -95dB
• Signal to Noise Ratio (SNR): -110dB
• TRS Wiring: Tip: HOT / Ring: COLD / Sleeve: GROUND
• Form Factor: Rackmount
• Enclosure: Laser engraved massive aluminium alloy box
• Build: Pure handmade — hand wired and tested point-to-point
• Compatibility: Universal DAW / Interface

Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment
