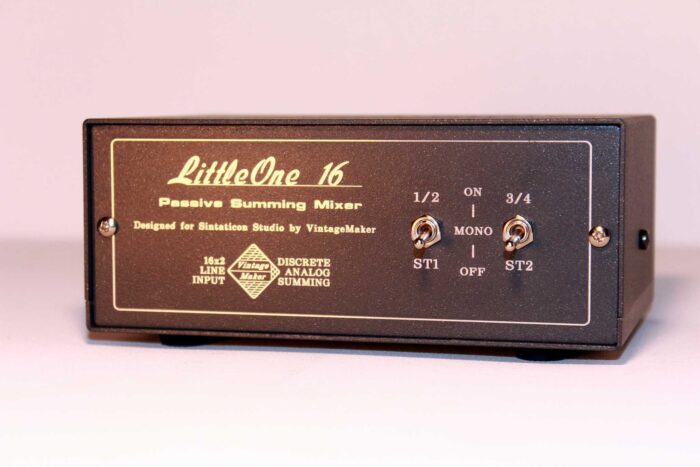

16 Input Analog Summing Box – DSUB TRS XLR (select) with 2 x STEREO to 4 MONO
239.00 € – 289.00 €
Please Select All Options!
STM – Stereo to Mono Switch: It provides an extra stable Real Analog Mono Base for your mix (on monos like Kick/Bass/MainVox/Snare and so on), saving precious digital-to-analog (DA) channels (so you don’t waste stereo L/R for a mono instrument), and offers superior separation and 3D depth for the rest of your stereo instruments. This feature turns L/R inputs ‘COMBINED’ (two hard-panned L/R inputs) into an absolutely centered mono signal (1 x stereo to 2 mono). For example, ‘SNARE’ on channel 1 (left), ‘KICK’ on channel 2 (right). Mono instruments in the DAW sequencer (Steinberg cubase, pro tools, flstudio, reaper, logic pro, Ableton etc.) should place the kick hard left, the bass hard on the right, and so on. Stereo instruments: If you don’t use mono channels in your mix, simply turn down all the mono switches, and you’ll have a fully stereo analog summing mixer with panning options available from the DAW.
You can get as many channels and options as you want, so let’s build your gear!
Build time: 10 Working Weekdays after cleared payment
Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!
This summing box mixer unit is suitable for connecting computer daw interface – synthesizers, samplers, and rhythm boxes, and then routing the combined output to a preamplifier for master processing.
Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

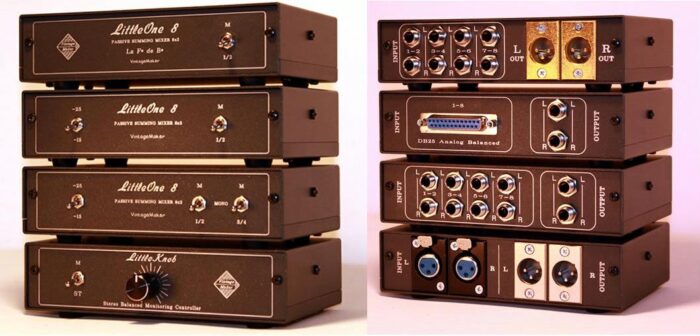

Portable compact studio Analog Studio Summing Mixer – Perfect for connecting synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with a wide range of audio studio interface sound cards, including UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse. Let us know your setup Built for Behringer UMC1820 U-PHORIA – Edirol – Roland Rubix44
DSUB IN – 2 TRS OUT, DSUB IN – 4 TRS OUT, DSUB IN – 2 XLR OUT, DSUB IN – 2 TRS + 2 XLR OUT, TRS IN – 2 TRS OUT, TRS IN – 4 TRS OUT
UAD Apollo, Apogee, Arturia, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, OTHER let me know
YES, NO THANKS
