4×2 Studio Precision Mastering Summing Mixer XLR – Input Channel Gain Control

Precision gain controlled mastering mixer designed for final mastering purposes, where two master stereos (main stereo + effect) or two stereos need to be summed into one final master stereo before recording. “When mixing reverb into a stereo mix, the levels must also be done carefully so as not to create any smearing.”

Rackmount Custom Passive Studio Precision Mastering Summing Mixer Dual Stereo Balanced for DAW Synth Keyboard or sound card digital analog mixing  2 Master Stereo channels before final print

Specs:

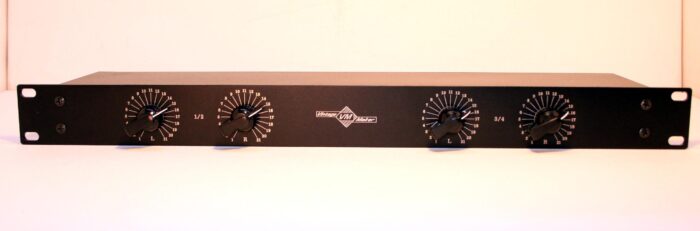

1U Standard Rack 19″ unit
4 input  XLR  balanced L/R
2 Out – XLR balanced L/R

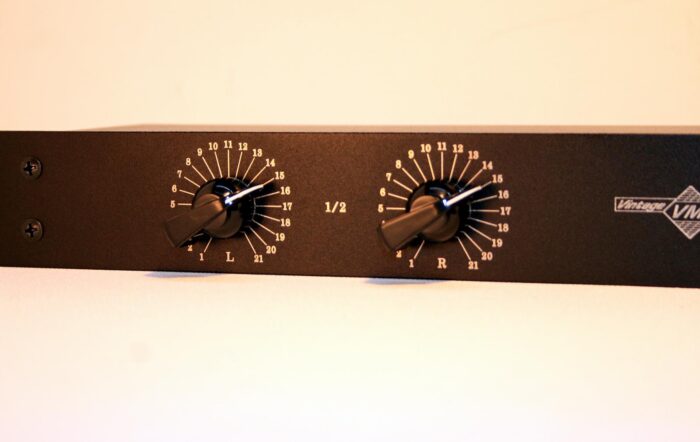

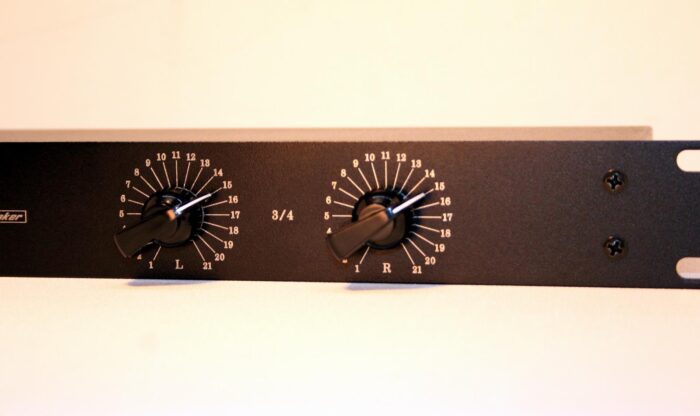

4 x 21 Step Precision Attenuators 0 – to -25dB range balanced
Basic reduction: select sound card or let me know reduction dB
Laser engraved – Unique Name (let me know)

Dual stereo discrete signal path, fully balanced from input to output!

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Introducing our custom-built unit, tailored precisely for applications like yours. Are you seeking to infuse your master mix with a touch of room reverb, delicately balancing between the divergent opinions of mastering engineers? Look no further.

While some may recoil at the mere suggestion, others will commend your discerning approach. Through meticulous experimentation, we’ve discovered that incorporating a subtle hint of room reverb can yield remarkable results:

1. Undo (diffuse) some of the unwanted artifacts introduced from saturation and compression, especially at high listening levels
2. De-ess sibilant cymbals and vocals
3. Make all the instruments sound like they are playing in the same performance space
4. Enhance the listener’s sense of depth and width of the mix
5. Add air to the mix
As long as a mastering reverb is EQed properly so as not to muddy the mix, this technique can breathe life back into an otherwise 2-dimensional sounding compressed mix. When mixing reverb into a stereo mix, the levels must also be done carefully so as not to create any smearing.

Embrace the transformative potential of our custom unit, revitalizing your compressed mix from two-dimensional confinement to dynamic vibrancy. It’s time to rediscover the essence of your sound, one subtle reverberation at a time.

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
