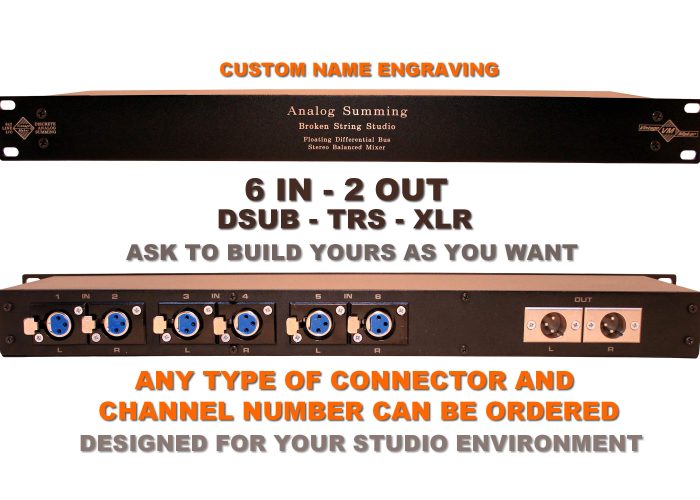

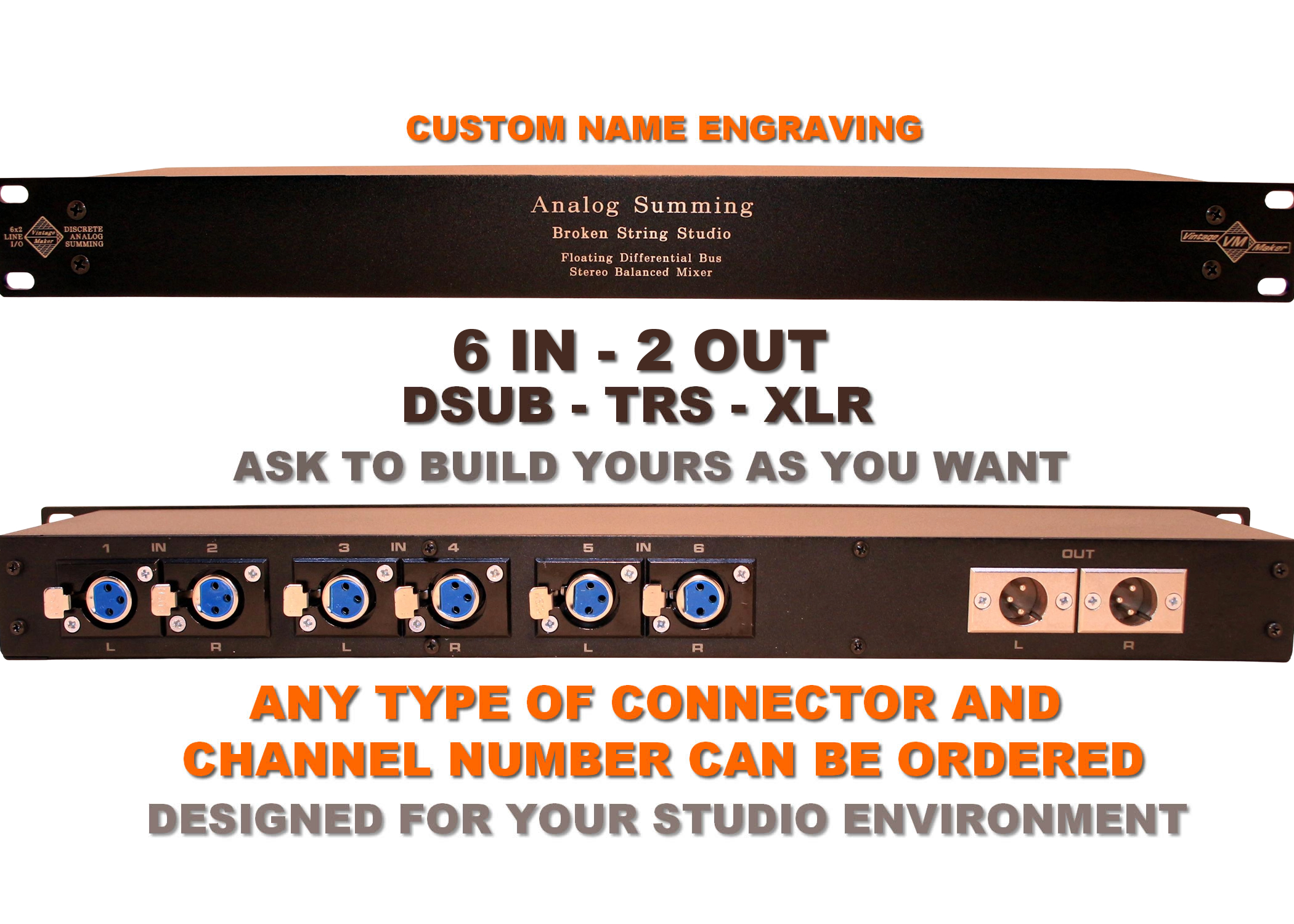

6×2 Passive Studio Summing Mixer XLR – TRS or DSUB I/O (select connection type)

Full balanced dual stereo discrete signal path from input to output – a no-compromise, uniquely designed, noise-free passive analog summing circuit for maximum transparency and musicality.

Read more about analog summing: https://vintagemaker.net/blog/

Custom 19″ rackmount Passive Studio Summing Mixer for hybrid analog mixing with any home or professional DAW interface, synthesizer, keyboard, or audio interface, including UAD Apollo, RME Fireface, Apogee, MOTU, or other interfaces (select your model from the drop-down menu).

Specs:

1U Standard 19″ Rack Unit

• 6 stereo inputs, selectable connector type:
  • D-SUB
  • TRS
  • XLR
• Balanced L/R signal paths

Outputs

• 2 outputs (1 stereo pair), selectable connector type:
  • TRS
  • XLR
• Balanced L/R

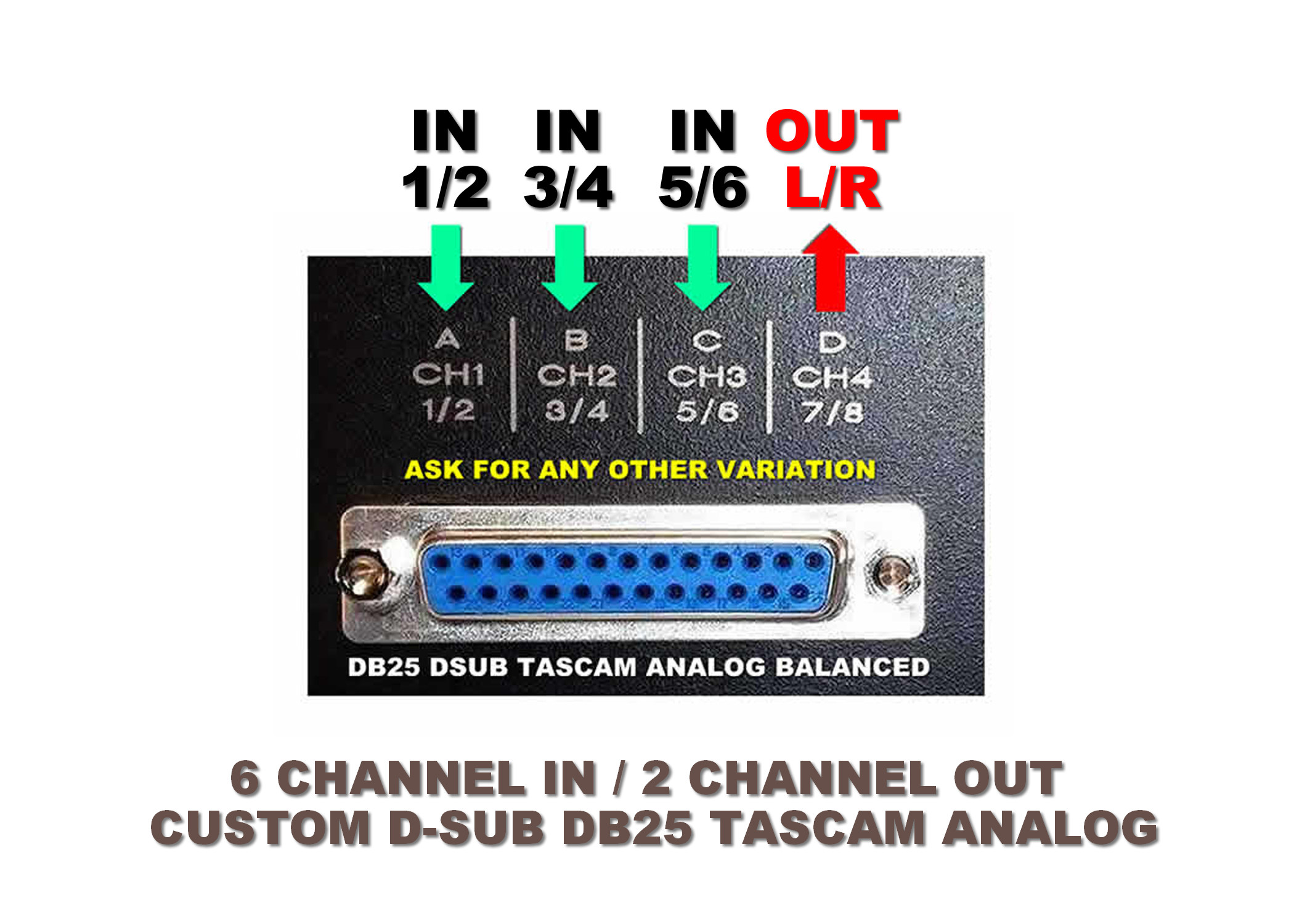

D-SUB Pin Assignment

• Inputs: 1/2, 3/4, 5/6
• Output: 7/8

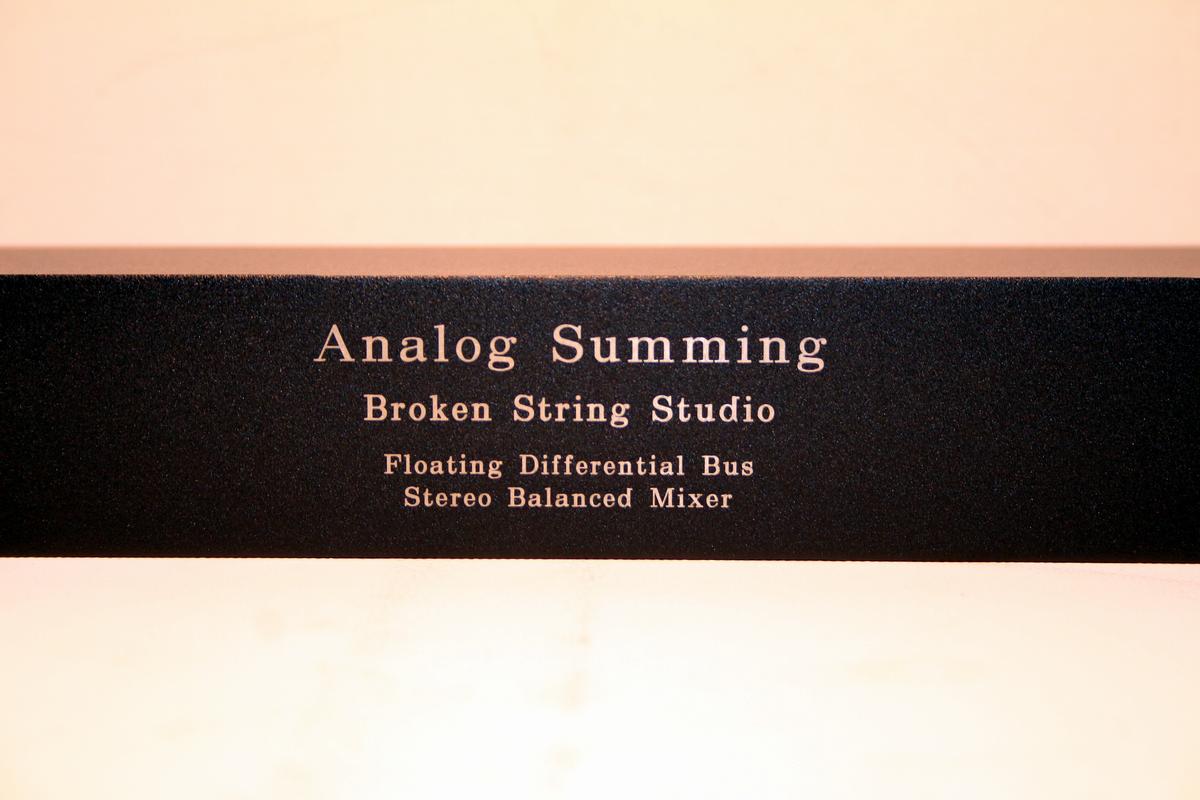

Front Panel

• Custom laser engraving included
• Please provide the desired text for engraving

Dual stereo discrete signal path, fully balanced from input to output!

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Enhance your digital ITB mixes with a touch of analog warmth!

Unlock the hidden analog potential of your DAW interface and give your mixes greater depth, dimension, and character. Experience a console-like sound with our Passive Studio Summing Mixer, designed to bring a new level of richness and musicality to your productions. Warm up your mixes and explore the analog dimension within your digital workflow.

Features

• Selected studio-grade VISHAY DALE military-spec metal film resistors
• Stereo balanced discrete signal path
• Input attenuation: -15 dB / -20 dB / -25 dB (select when ordering)
• Balanced output impedance: 600 Ω – 1 kΩ
• Frequency response: 0 Hz – 500 kHz
• Crosstalk @ 1 kHz: -95 dB
• Signal-to-noise ratio (SNR): -110 dB
• TRS wiring: Tip = Hot, Ring = Cold, Sleeve = Ground
• Pure handmade construction
• Hand-wired and point-to-point tested
• Laser-engraved, solid aluminum enclosure
