Analog Summing LCR (Left-Centre-Right) panning – XLR – TRS or DSUB I/O (select connection type)
539.00 € – 629.00 €
True Analog Passive Studio Summing Mixer – Dual Stereo Balanced Discrete. A no-compromise, uniquely designed, noise-free analog summing circuit. Designed for all home, pro, and semi-pro studio interfaces, delivering high-quality, console-like real analog summing for a superior mix.

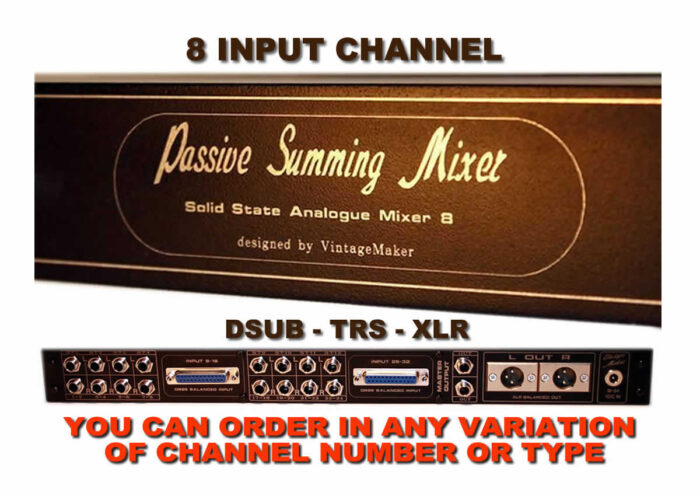

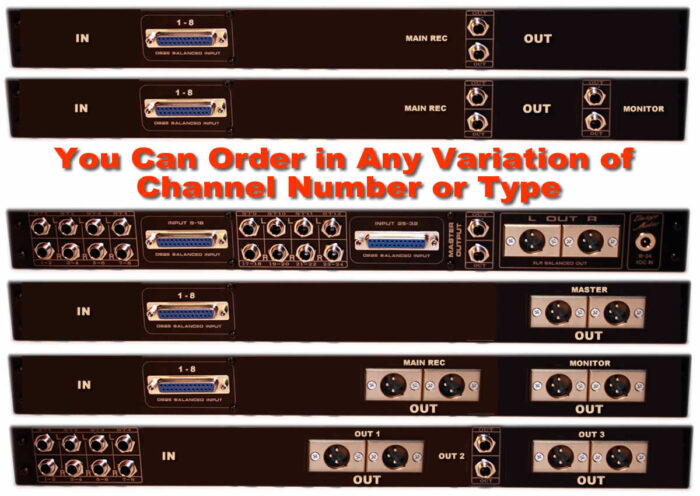

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION
Can’t find the right product? Tell me what you need – I’ll build it for you!
Please Select All Options!
Fully balanced dual-stereo discrete signal path from input to output – with Analog Summing LCR (Left-Centre-Right) panning a no-compromise, uniquely designed, noise-free analog summing circuit. Backed by 15 years of professional production experience!

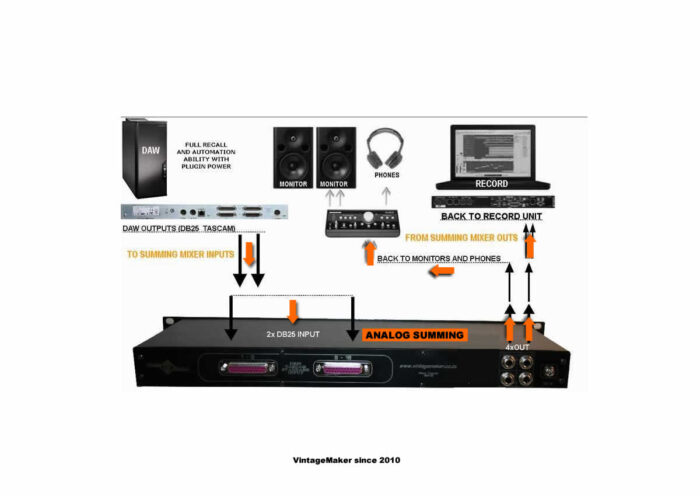

Rackmount Custom Passive Studio Summing Mixer – Dual Stereo Balanced for DAW, Synth, Keyboard, or Sound Card Digital-Analog Mixing (e.g., UAD Apollo, RME Fireface, Apogee, MOTU, or other interfaces – select your interface from the drop-down menu.
Specs:
1U Standard Rack 19″ unit

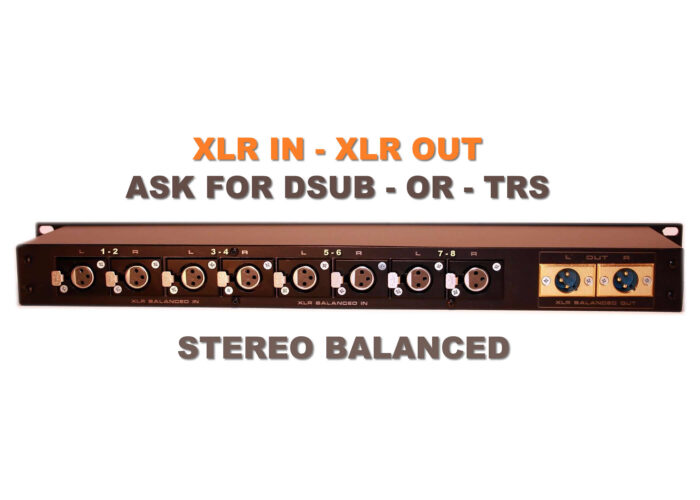

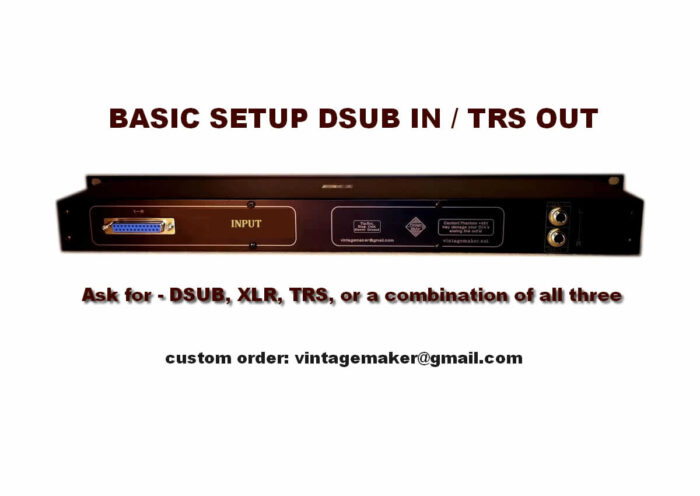

8 input DSUB or TRS or XLR (select) balanced L/R
2 Out – 1x Stereo TRS or XLR (select) balanced L/R

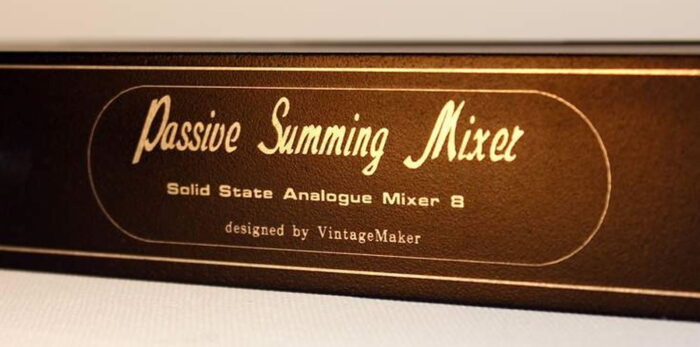

Laser engraved – Unique Name (let me know)
LCR PAN option with a true analog 3-position rotary switch, allowing precise hard panning to the Left, Center, or Right. This provides complete control over the spatial placement of individual audio sources with authentic analog positioning. see more about switch function…

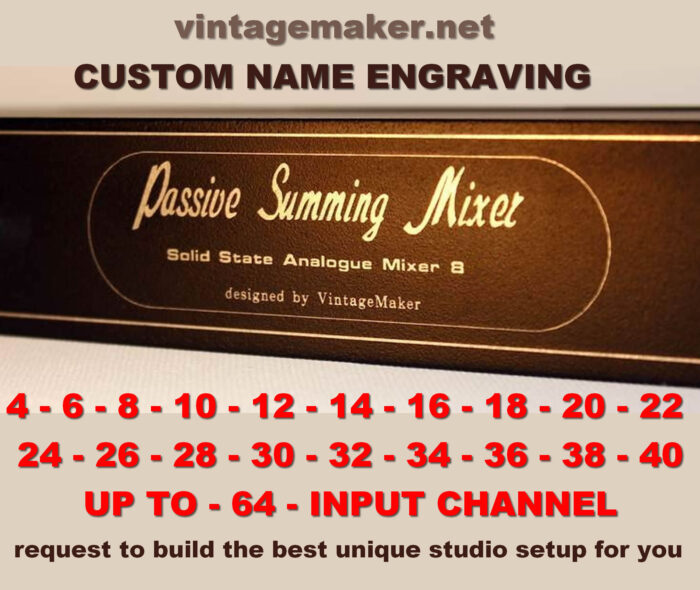

Custom name (text) engraving is usually free. For logo engraving (depending on complexity), a fee may be charged for implementation, vectorization, and other related processes.
Dual stereo discrete signal path, fully balanced from input to output!
Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 15 Working Weekdays after cleared payment

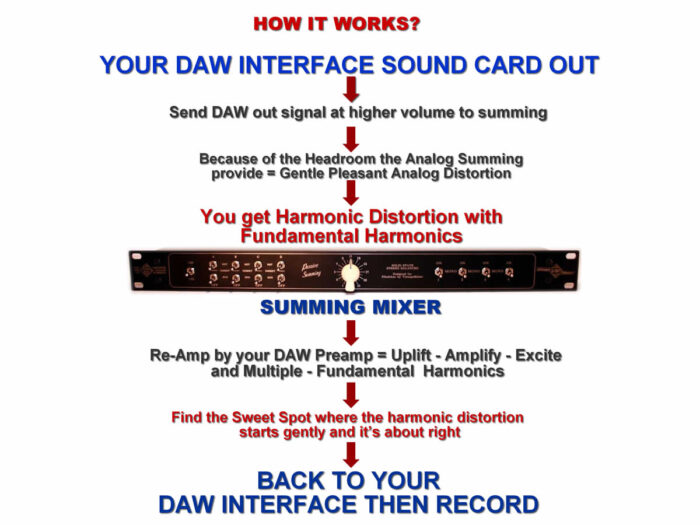

Enhance your digital ITB mixes with a touch of analog warmth! Uncover the hidden analog potential of your DAW interface and boost your mixes with depth and vibe. Experience a console-like sound with Passive Studio Summing Mixer that brings a new level of richness to your music. Warm up your mixes and explore the analog dimension in your digital workspace
SOS Sound on Sound LCR (Left-Centre-Right) panning can help you avoid falling into that trap. It isn’t a recipe that you can follow to make any track sound good. read more https://www.soundonsound.com/techniques/lcr-panning-pros-and-cons
Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

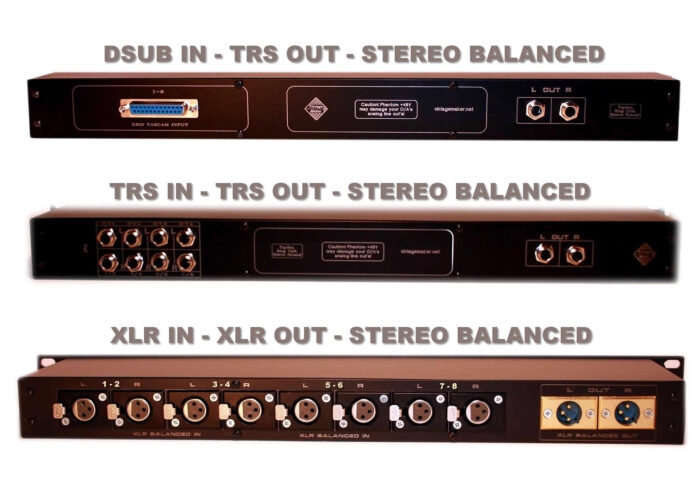

| IN-OUT CONNECTION TYPE | 8 DSUB IN – 2 TRS OUT, 8 DSUB IN -2 XLR OUT, 8 TRS IN – 2 TRS OUT, 8 TRS IN – 2 XLR OUT, 8 XLR IN – 2 TRS OUT, 8 XLR IN – 2 XLR OUT, OTHER – let me know |
|---|---|
| SOUND CARD? | UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know |
| KNOB STYLE | VINTAGE BLACK, VINTAGE WHITE |
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 15 WORKING DAYS |
1 review for Analog Summing LCR (Left-Centre-Right) panning – XLR – TRS or DSUB I/O (select connection type)
5.00 out of 5 stars
Add a review
