10-Input TRS Analog Synth Keyboard Summing Mixer with LCR Left – Center – Right Pan Switch
0.00 €
Pro Tip: Push the instruments into the summing mixer at a higher level until you start hearing a subtle harmonic distortion. This will add warmth, depth, and better separation to your mix, giving it a more professional, polished sound – just like a finished record. The headroom provides a safe place for transients, ensuring clarity and punch in your mix.
ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION
Can’t find the right product? Tell me what you need – I’ll build it for you!
Ask to Build Yours!

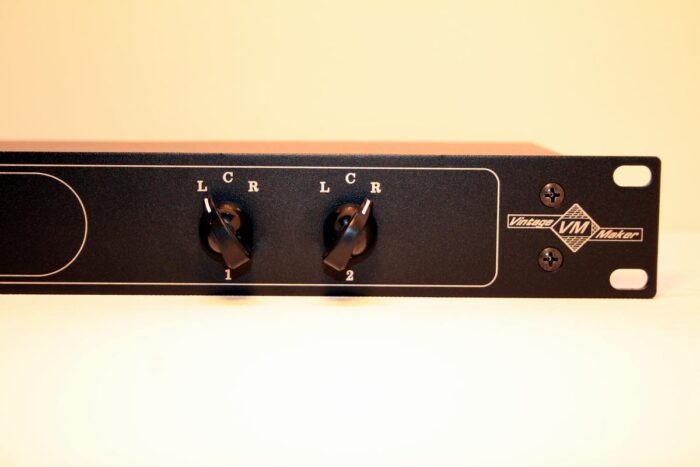

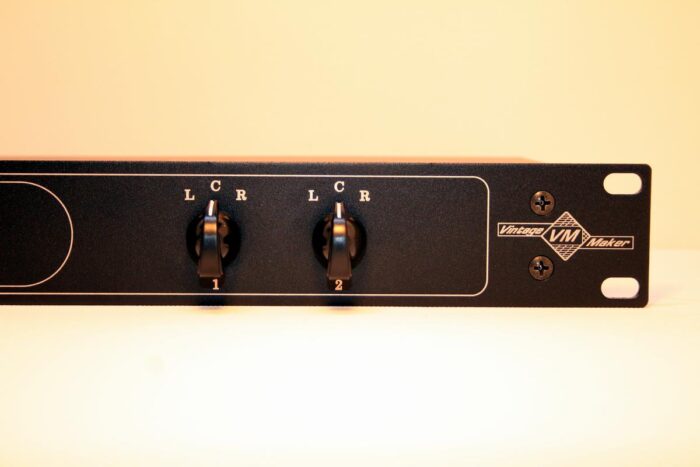

LCR PAN option with a true analog 3-position rotary switch, allowing precise hard panning to the Left, Center, or Right. This provides complete control over the spatial placement of individual audio sources with authentic analog positioning. see more about switch function…

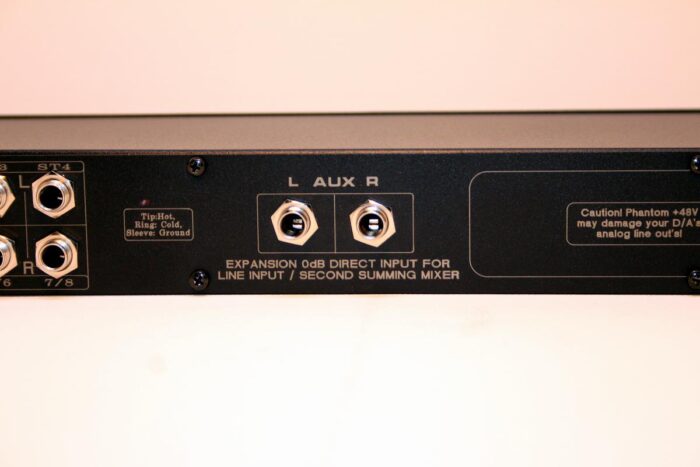

Expansion – Expander AUX input
Linking another (second slave) Passive or Active summing unit or Line Input
Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 15 Working Weekdays after cleared payment
Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
Authentic analog passive studio summing mixer featuring a dual stereo balanced, discrete, zero-compromise design. Built with a uniquely engineered, noise-free analog summing circuit, it’s a perfect match for DAWs like PreSonus Studio One Pro and Ableton Live 11. Designed to pair seamlessly with outboard gear such as the Sonic Farm Creamer and SSL bus compressor. Offers 8 balanced TRS inputs and 2 balanced TRS outputs for clean, high-headroom summing
| SOUND CARD? | UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know |
|---|---|
| VARIABLE HEADROOM GAIN SWITCH | -6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB |
| OUTBOARD HARDWARE INSERT | PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know |
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 15 WORKING DAYS |
