8 Ch Input Passive Summing Mixer – LittleOne Wide – AUX Expansion Input

Upgrade your DAW Interface’s Sound Card with an Analog Summing Mixer and get the warm analog-console-like sound Stereo Balanced studio grade high quality warm signal path.

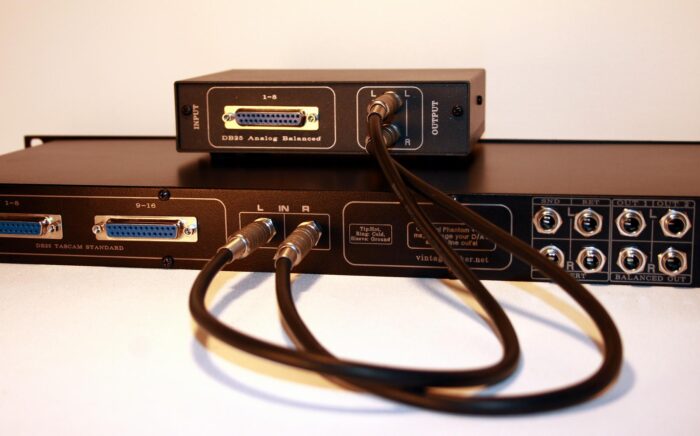

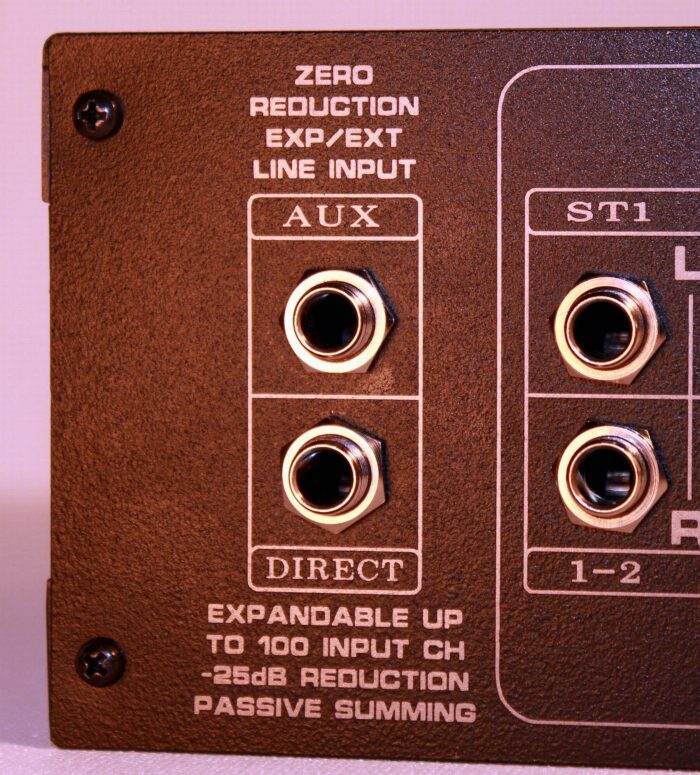

AUX INPUT (0dB reduction input)—> LINE IN / second SUMMING MIXER or other external device

STM – Stereo to Mono Switch: It provides an extra stable Real Analog Mono Base for your mix (on monos like Kick/Bass/MainVox/Snare and so on), saving precious digital-to-analog (DA) channels (so you don’t waste stereo L/R for a mono instrument), and offers superior separation and 3D depth for the rest of your stereo instruments. This feature turns L/R inputs ‘COMBINED’ (two hard-panned L/R inputs) into an absolutely centered mono signal (1 x stereo to 2 mono). For example, ‘SNARE’ on channel 1 (left), ‘KICK’ on channel 2 (right). Mono instruments in the DAW sequencer (Steinberg cubase, pro tools, flstudio, reaper, logic pro, Ableton etc.) should place the kick hard left, the bass hard on the right, and so on. Stereo instruments: If you don’t use mono channels in your mix, simply turn down all the mono switches, and you’ll have a fully stereo analog summing mixer with panning options available from the DAW.

In 1: Mono Kick
In 2: Mono Bass
In 3/4: Snare, hats some percs > stereo
In 5/6: Percs toms synth blips etc. > stereo
In 7/8: Synths Effects pads Guitars Piano Vocals etc > stereo

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
