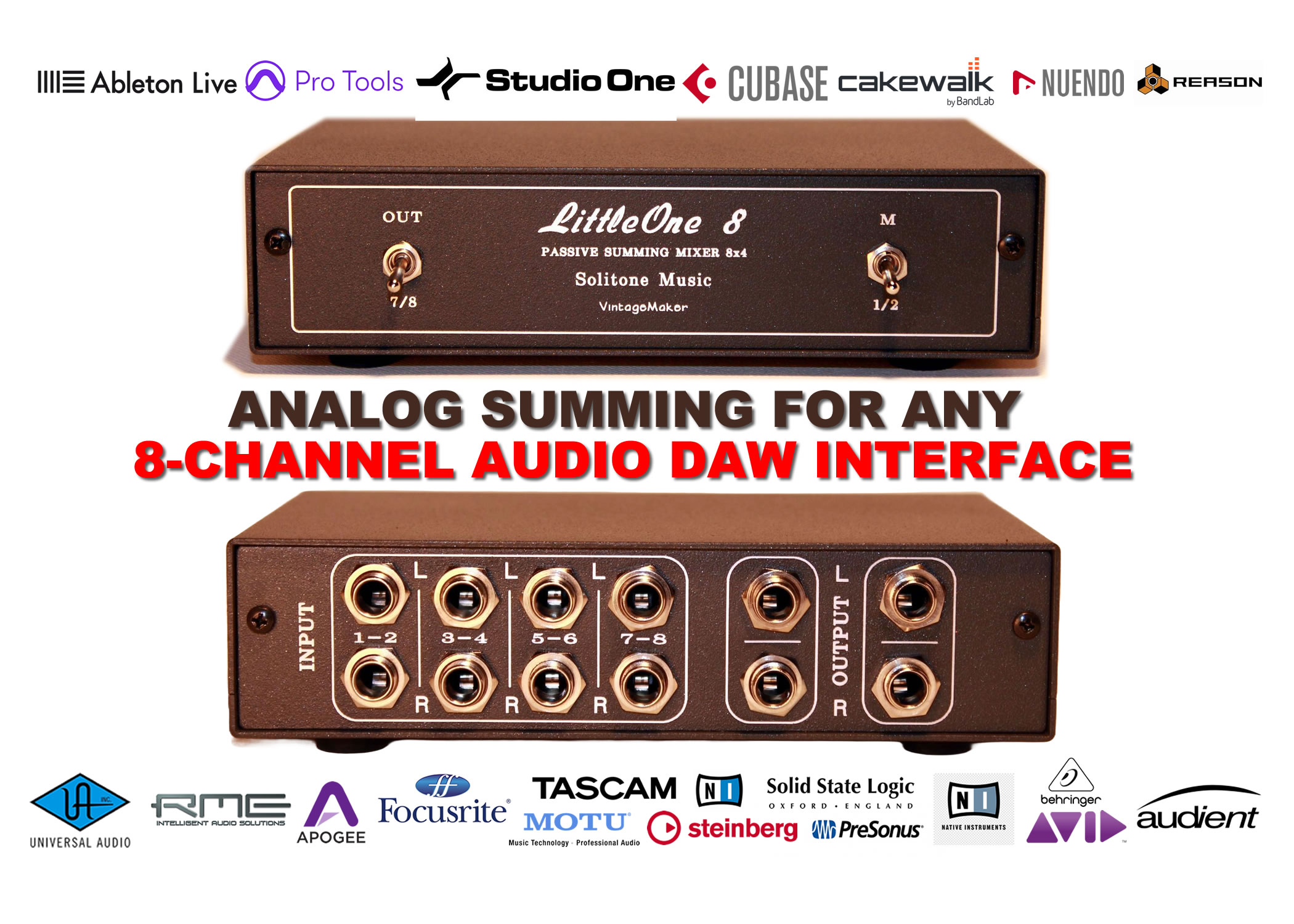

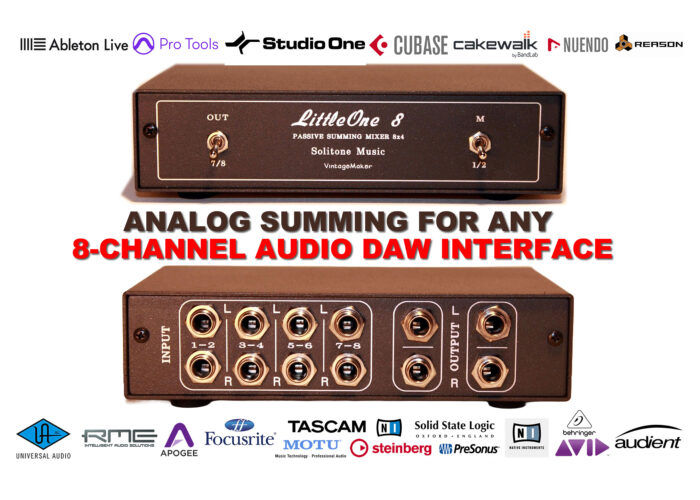

8×4 Analog Summing Mixer Box for Any 8-Channel DAW Audio – TRS I/O – Universal Interface Compatibility with Steinberg, UAD, Focusrite, MOTU, PreSonus, RME, Apogee, Audient, Behringer, Native Instruments, SSL, Tascam, Avid and so on…

Upgrade your DAW Interface’s Sound Card with 8 Ch Input Passive Summing Mixer and get the warm analog-console-like sound. Stereo Balanced studio grade high quality warm signal path.

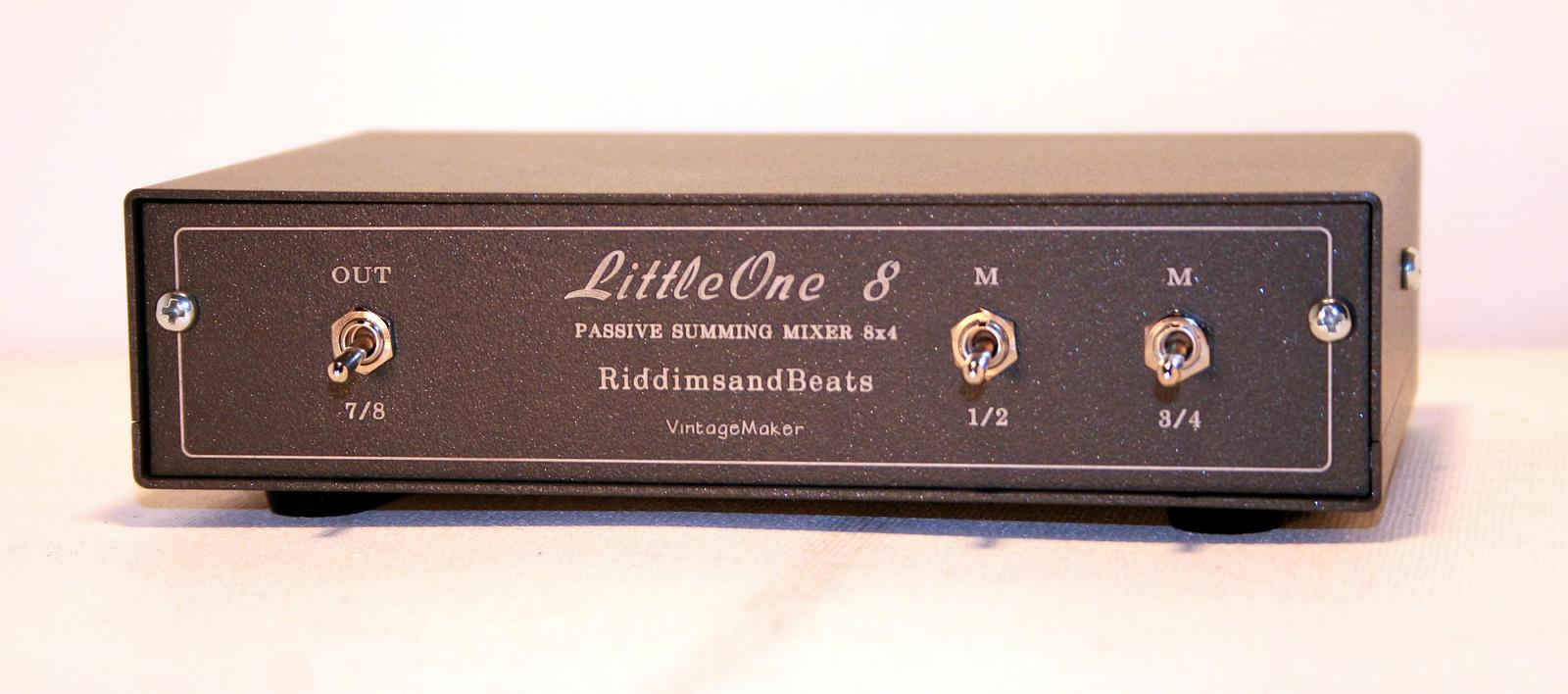

STM – Stereo or Mono Input Switch: It provides an extra stable Real Analog Mono Base for your mix (on monos like Kick/Bass/MainVox/Snare and so on), saving precious digital-to-analog (DA) channels (so you don’t waste stereo L/R for a mono instrument), and offers superior separation and 3D depth for the rest of your stereo instruments. This feature turns L/R inputs ‘COMBINED’ (two hard-panned L/R inputs) into an absolutely centered mono signal (1 x stereo to 2 mono). For example, ‘SNARE’ on channel 1 (left), ‘KICK’ on channel 2 (right). Mono instruments in the DAW sequencer (Steinberg cubase, pro tools, flstudio, reaper, logic pro, Ableton etc.) should place the kick hard left, the bass hard on the right, and so on. Stereo instruments: If you don’t use mono channels in your mix, simply turn down all the mono switches, and you’ll have a fully stereo analog summing mixer with panning options available from the DAW. See documentation and audio examples…

Mono Mode Routing from DAW:

• In 1: Mono Kick

• In 2: Mono Bass

• In 3/4: Snare, hi-hats, some percussion → Stereo

• In 5/6: Percussion, toms, synth blips, etc. → Stereo

• In 7/8: Synths, effects, pads, guitars, piano, vocals, etc. → Stereo
  Panning from DAW is available for 3/4, 5/6, and 7/8 stereo inputs.

Stereo Mode Routing from DAW:

• In 1/2: Main Stereo tracks → Stereo

• In 3/4: Kick, Snare, hi-hats, some percussion → Stereo

• In 5/6: Percussion, toms, synth blips, etc. → Stereo

• In 7/8: Synths, effects, pads, guitars, piano, vocals, etc. → Stereo
  Panning from DAW is available for all stereo inputs.

Input to Output or Input to Mix Switch  – Select your desired stereo input from the drop-down menu.
Enables direct monitoring from DAW Interface by routing input either to the mixer or straight to the master outputs. No need to unplug monitor cables – keep your interface connected to the summing mixer at all times. You don’t have to unplug your interface monitor in everyday work; you can keep it connected at all times to the summing mixer.

• Down Position: Input signal is routed to the summing mixer for analog mixing (standard summing operation).

• Up Position: Input signal is sent directly to the master outputs at full volume.

Important:

• the other summing channels remain active. These channels need to be muted in the DAW.

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
